Unique Features

  • DIN 1/2, 144 mm x 144 mm Body
  • IP65 (NEMA 4X) Waterproof and dustproof design
  • Auto sensing, Backlit Large LCD Screen with adjustable contrast & brightness
  • 3-point calibration and the last calibration data displayable
  • Hi/Lo, Hi/Hi, Lo/Lo selectable two contact outputs with programmable set-points and hysteresis
  • Continuous sample measurements average function to enhance stability
  • Automatic sensor clean function with programmable time interval
ph-03-dimensions
Specification Sheet

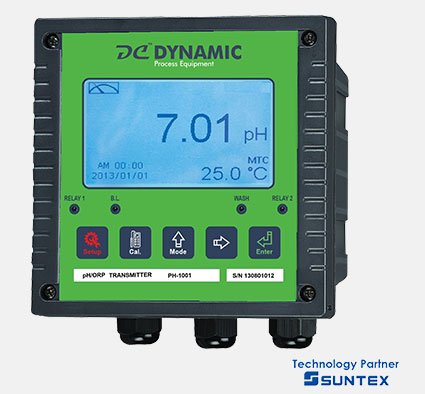

pH/ORP Transmitter SmartSense PH-1001
Model PH-1001 PH-1001-AD
Measurement Range pH -2.00 to 16.00 pH, ±0.01 (±1 Digit)
ORP -1999 to 1999 mV, ±0.1%(±1 Digit)
Temperature -30.0 to 130.0°C, ±0.2°C (±1 Digit)
Temperature Compensation Automatic (Pt-1000 or NTC 30K) OR Manual Input
Input Impedance >1012Ω
Display Large LCD with auto-sense backlight and contrast adjustme
Text Mode Text, Chart or Trace Mode (Selectable)
Analog Output pH/ORP Isolated DC 0/4~20 mA corresponding to pH/ORP, max load 500Ω
Temperature Isolated DC 0/4~20 mA -
Serial Communication - RS-485
Calibration 3 Point 5 Point
Event Log - Last 50 Events
Output Relay Rating 240 VAC, 0.5A max. (recommended)
Set Point Hi/Lo, Hi/Hi, Lo/Lo selectable two limited programmable, ON/OFF
Wash Relay Rating 240 VAC, 0.5A max. (recommended)
Time On: 0-99min. 59sec, Off: 0-999hr 59min.
Ambient Temperature 0 to 50°C
Storage Temperature -20 to 70°C
Power Supply AC Version 100V to 240V AC ± 10%, 50/60Hz, 8W Max.
DC Version 12V to 36V DC, 8W Max.
Installation Wall mounting, Pipe mounting, Panel mounting
Dimensions Enclosure H: 144 mm W: 144mm D:115 mm (1/2 DIN)
Panel Cut 138 mm x 138 mm
Weight ~ 800 Grams
Protection IP 65 (NEMA 4X)
Basic Features
Waterproof protection
Waterproof protection

Provides the instrument safety with IP65 waterproof protection and front flap cover design for easy installation and wiring.

Dot-Matrix LCD

For convenience and better process safety, it reveals the last calibration records and a system setting overview.

Waterproof protection
Waterproof protection
Auto-Sense Backlight Display

For clear reading and energy saving, it turns on the backlight automatically when the environment becomes dark.

Graphical Menu

Allows extremely intuitive & quick setting and calibration.

Waterproof protection
Advance Features
Waterproof protection
RS-485 MODBUS protocol

Provides long-distance, multiple values and configuration info transmission and anti-electrical signal protection.

Real-time chart mode

3 minutes real-time dynamic graph to help you realize recent development in control.

Waterproof protection
Waterproof protection
Trace mode

Set up from 3 mins to four weeks duration of the measured value trend graph to help you master the process history.

Events logbook

Actions, current output out of range, power outages and error records, no need for standby and record them anymore.

Waterproof protection
Application
  • Industrial Chemical Processes
  • Scrubber, Wastewater & Effluent Treatment
  • Powerplant, Petrochemicals
  • Pulp & Paper, Sugar Industry
  • Fermenters, Bio-reactors
  • Dairy & Beverages
  • Food processing
  • Condensate, Cooling water
Ordering Information
SmartSense PH-1001 _Code Firmware Version
Blank Basic Version
- AD Advance Version
_Code Power Supply
Blank 240V AC
- DC 24V DC
