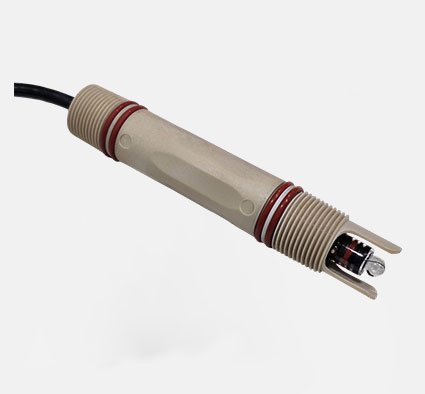

ph-03

Unique Features

  • Ion-conductive polymer Secondary junction.
  • Temperature Range: 0 to 100 Degree Celsius
  • Integrated Temperature RTD
  • Integrated Shielded Low Noise Cable 5/10M
  • Optional Liquid Earth
  • Process Connection: 2 x 3/4" NPT Male Threads

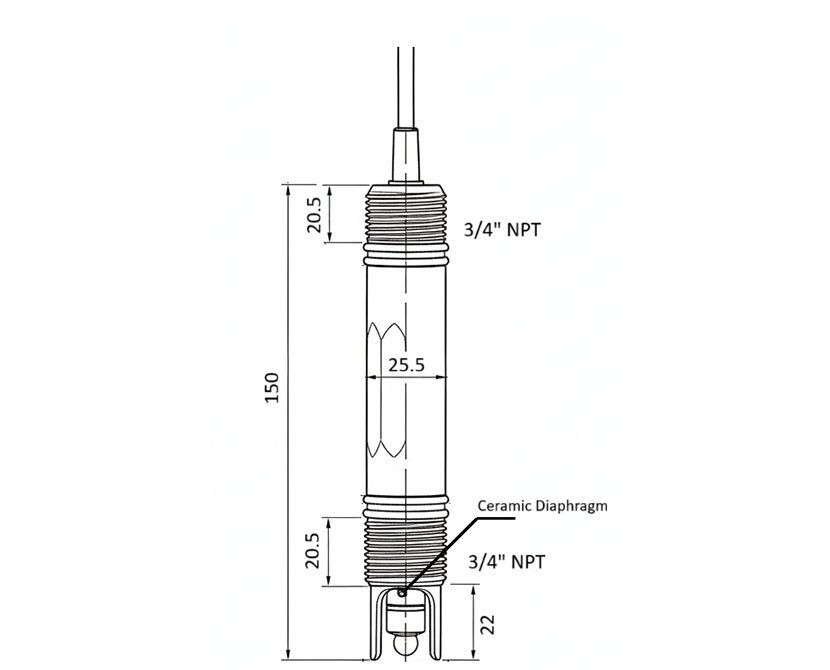

ph-03-dimensions
Specification Sheet
pH/ORP Sensor ChemSense PH/RX-0105
Application Demanding and harsh process chemicals, effluent and wastewater treatment
Construction Liquid Junction Ceramic
Type Ryton Body Combination Electrode
Reference Ag/AgCl in pressure-compensated chamber isolated by a Secondary Non-porous Ion Conductive Polymer Junction
Electrolyte High Density Gel KCl electrolyte
Measurement Range pH 0 to 14 pH
Temperature Sensor PT100/PT1000
Process Range Temperature 0 to 100 °C
Pressure 10 Bar
Process Connection NPT 3/4" Male Thread
Cable Connector Integrated Coaxial Cable 5M/10M
Application
  • Harsh industrial chemical processes
  • Scrubber
  • Wastewater & Effluent Treatment
  • Powerplant, Petrochemicals
Download
ChemSense PH_RX-0105_Datasheet
