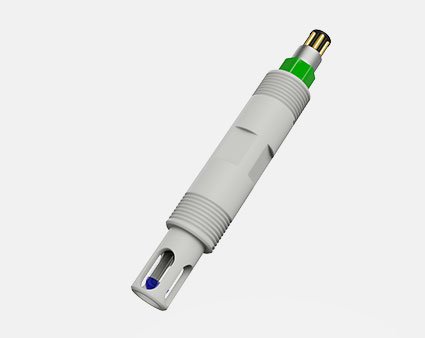

110P

About Product

  • Impeccable machine finished body with MOC PP, PTFE or PVDF
  • Designed for sensor tip protection against abrasion and damage
  • Various sealing material available such as EPDM, VITON, KALREZ.
  • Process Connection: ¾” NPT and 1” NPT Male.
  • Sensor Specification: 120mm ø12 PG13.5 Sensor

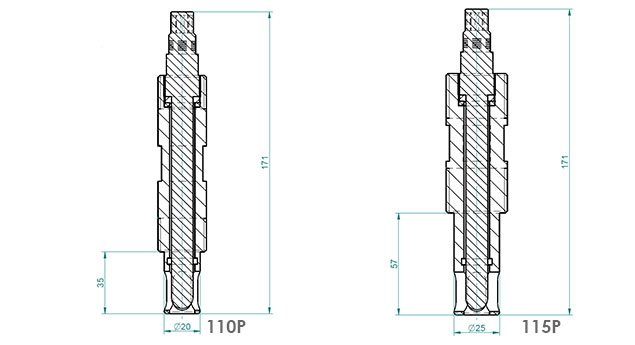

110-115P-dimensions
Specification Sheet
Model 110P 115P
Pressure 0 to 7 Bar
Process Temperature Up to 120 °C
pH/DO Sensor Specs 120mm ø12 PG13.5
MOC PP, PTFE, PVDF
Seals EPDM, FPM (Viton), FFKM (Kalrez)
Process Connection 3/4" NPT 1" NPT
Ordering Information
SmartDip 110P _Code MOC of Wetted Parts
SmartDip 115P
5 PP
6 PVDF
8 PTFE
_code MOC of Seals
EP EPDM
VI VITON (FPM)
FK FFKM (Kalrez)
